17-22 Ford SuperDuty Powered Running Board Harness

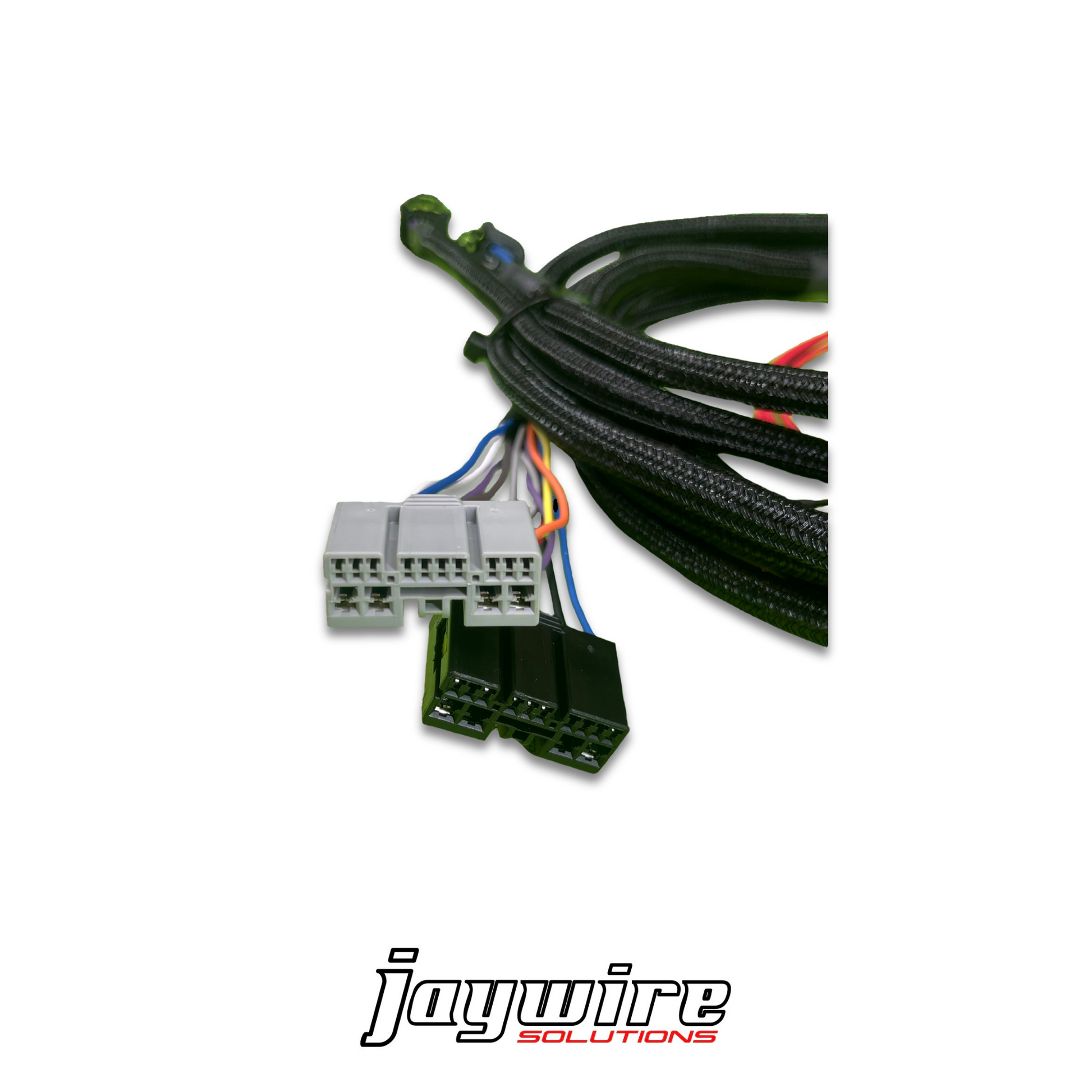

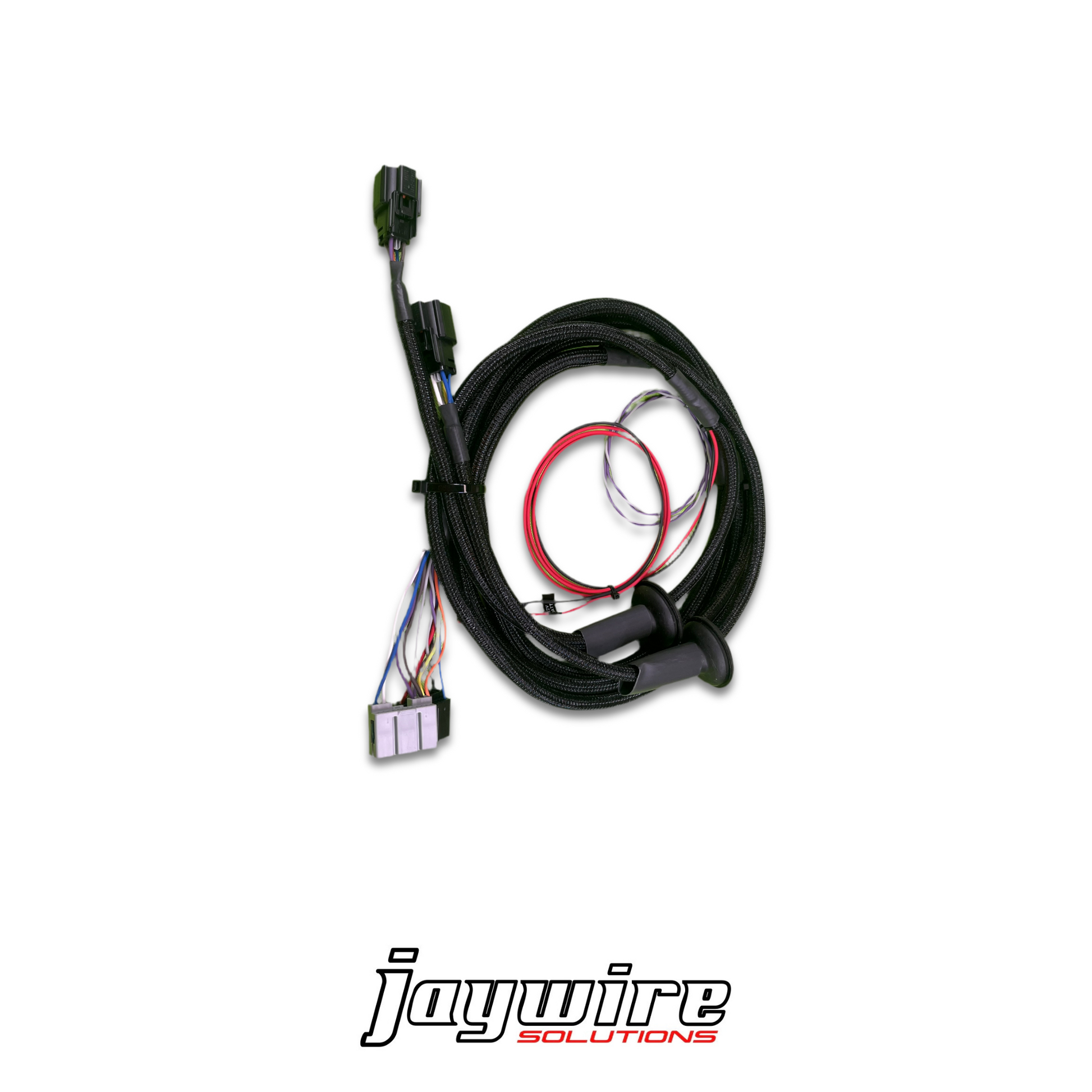

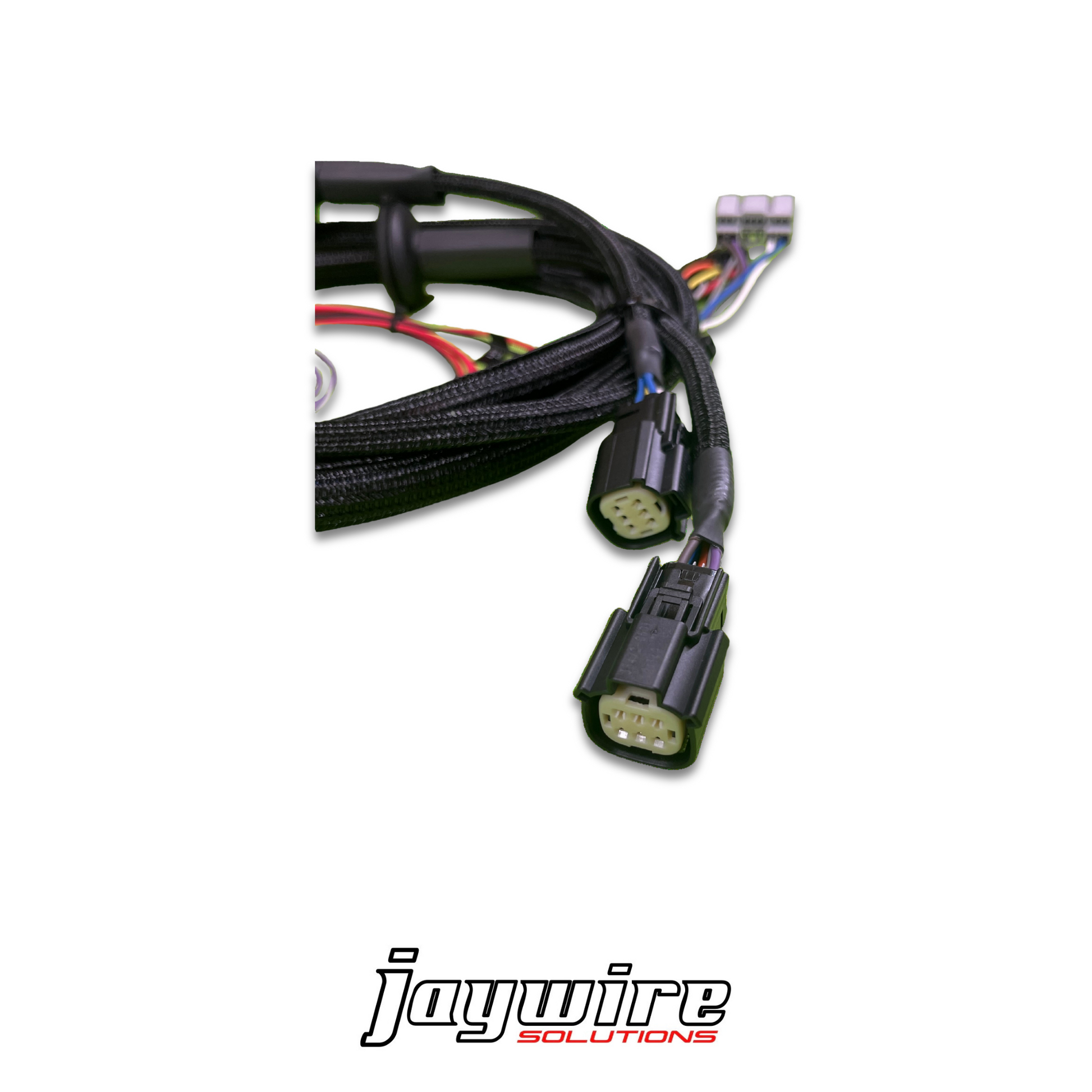

Ford Super Duty Powered Step Wiring Harness – Console-Mount Setup

This custom harness provides a critical missing link for adding powered running boards to Ford Super Duty trucks that did not come equipped with them from the factory.

Designed to work with your existing step control module and powered running boards (not included), this harness supports a console-mounted control module location and uses grommets for clean installation through the factory holes in the floor.

Note: Installation requires splicing into the CanBus system, as well as wiring to a constant power source and ground terminal.
Programming may be required. This product is intended for experienced installers.

Product Details

• Harness supports powered running board retrofit
• Designed for console-mounted control module (not included)
• Includes grommets for OE floor hole pass-through
• Requires splicing into CanBus, power, and ground
• 8” cluster required — will not work with XL trim
• Other model years may be compatible, but not guaranteed

Important Notes

• Installation requires wiring knowledge and tools
• Programming may be necessary
• Control module and running boards not included
• Compatibility not guaranteed outside supported years/trims
• All sales are final
